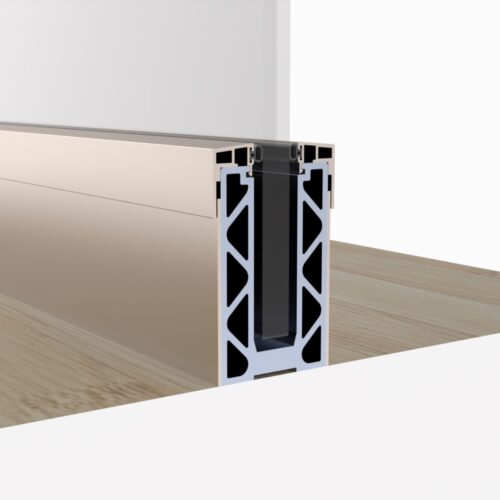

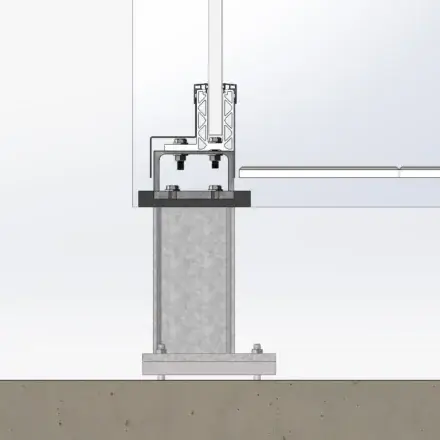

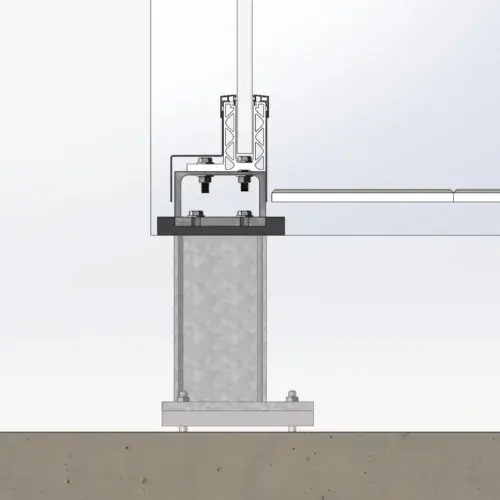

Surface mounted base channel for fixing glass balustrades below or above the finished floor levels. The channel can be mounted to concrete or steel edges or to bespoke steel brackets to integrate with existing edge details. Glass is mounted in the channel with the BA proprietary wet grout system or dry wedge system.

Offset mounted base channel for surface fixing glass balustrades to balcony edges in concrete or steel. The channel can be concealed below finished floor levels and is used extensively where balustrades are mounted close to edges of balconies. The channel is designed to fully integrate with other trades or disciplines. Glass is mounted in the channel with the BA proprietary wet grout system or dry wedge system.

Side mounted base channel that provides an alternative fixing method, maximising floor space. The channel is usually side mounted to concrete or steel balconies or parapet walls and is concealed with cover trims or within the wall and insulation build-up. This system integrates well with waterproofing and other trades and glass is mounted in the channel with the BA proprietary wet grout system or dry wedge system.

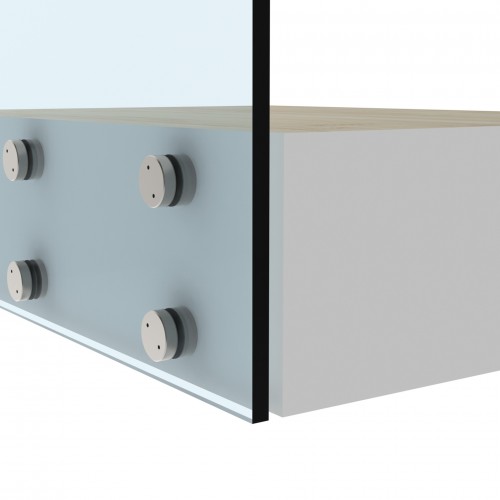

Glass is offset mounted to parapet walls or stair stringers on double pig nose bolt spacer assemblies. This fixing detail simplifies stair fixings where the stair stringer is to be exposed and visible.

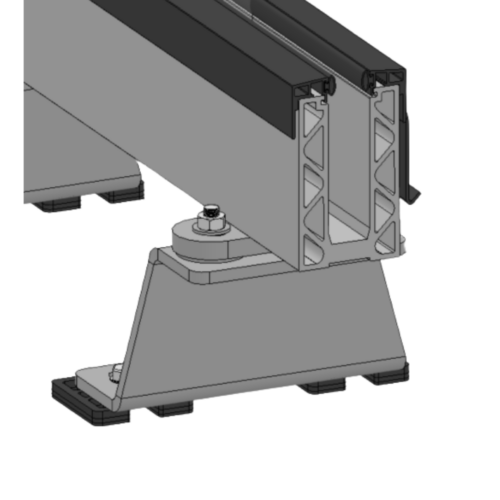

Balustrade fixing bracket technology that provides a sealable penetration detail through waterproofing membranes

17.5mm thick laminated clear toughened glass is typically used for balustrade loadings of 0.74kN/m design loads. This includes most residential balconies and terraces. Glass is available in various options of opaque or coloured interlayers.

21.5mm thick SGP laminated clear toughened glass  – which is used in public areas and general walkways where design loads of 1.5kN/m are required. Glass is available in various options of opaque or coloured interlayers.

26.5mm thick clear toughened and laminated glass is used in public walkways wider than 3m and other areas that are subject to overcrowding (3kN/m). Glass is available in various options of opaque or coloured interlayers.

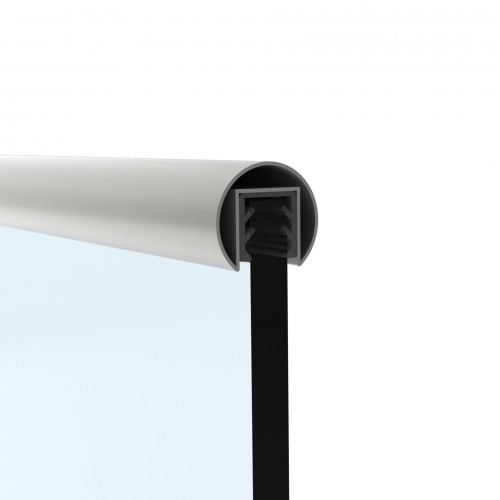

48mm diameter stainless steel slotted handrails top mounted to glass balustrades with appropriate gaskets.

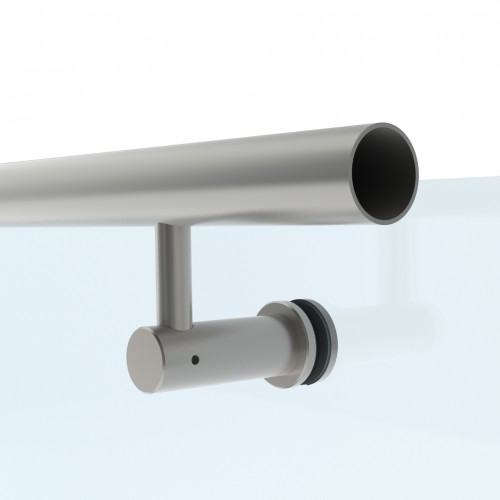

42mm or 50mm diameter stainless steel handrails offset mounted to the glass at 900mm height above finished floor level.

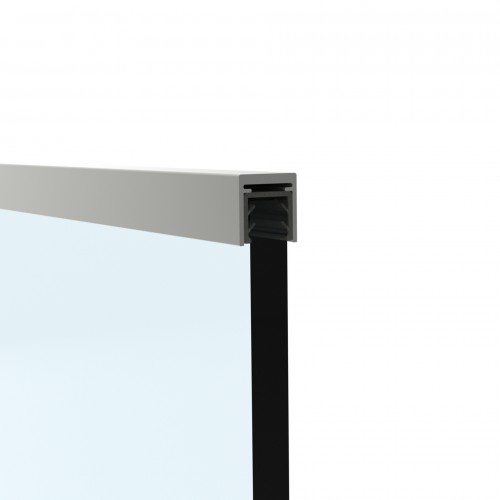

Low profile satin aluminium capping top rail to glass.

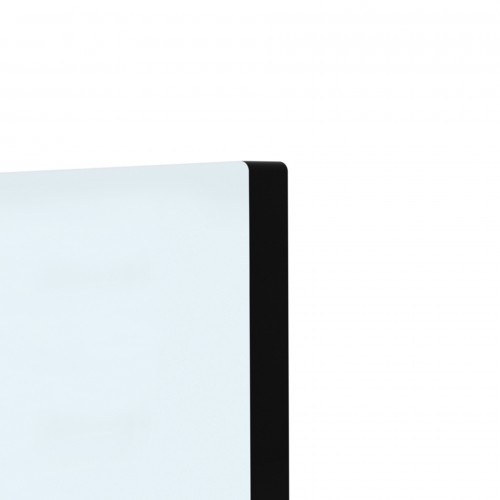

Toughened and laminated glass with no horizontal top rails.

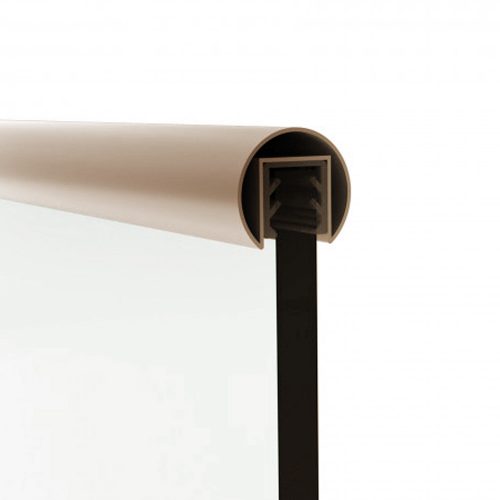

VBA99 is a Hygienic Copper-Alloy Handrail and can be utilised for a variety of frequently used touch-points where bacteria would normally spread. Tested by the University of Southampton and proven to kill Sars-cov-2 entirely in under an hour.

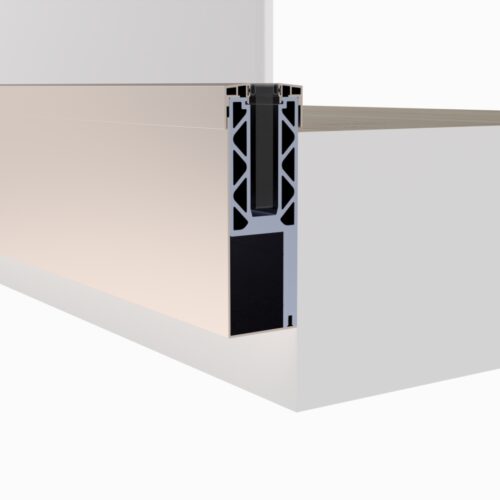

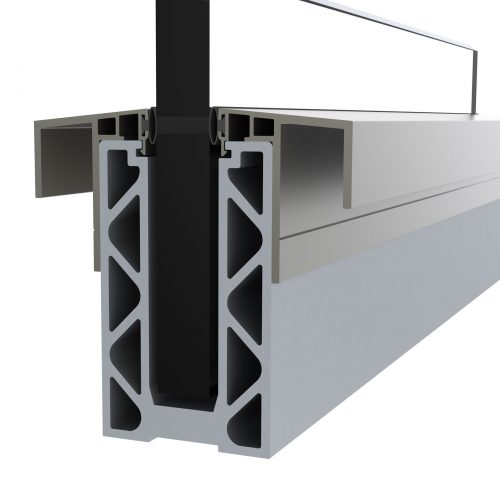

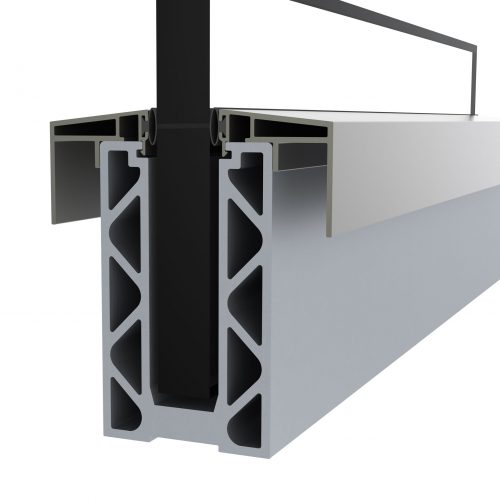

Powder coated base channel cover trim and gasket to coordinate with balcony fascias or waterproofing layers of up to thicknesses of 22mm and for fitting prior to waterproofing or cladding.

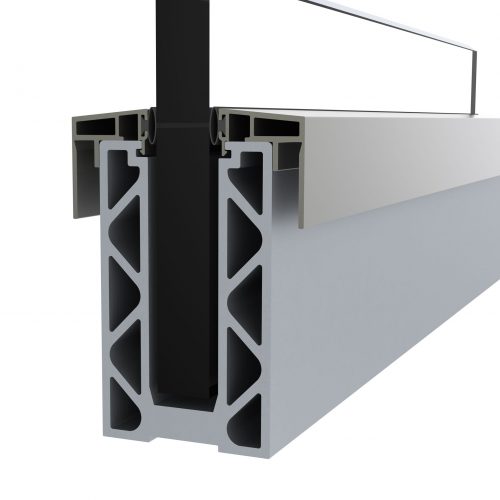

Powder coated base channel cover trim and gasket to coordinate with plasterboard or waterproofing layers of up to thicknesses of 10mm.

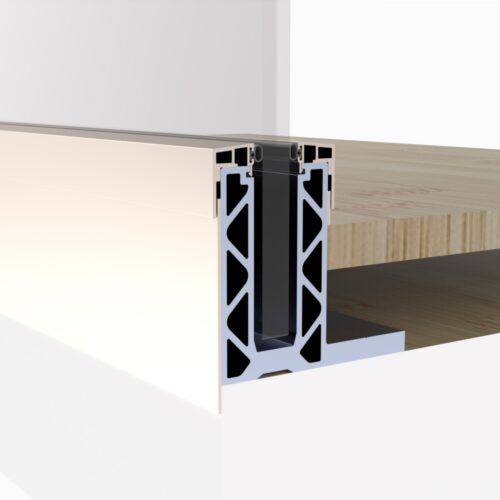

Powder coated base channel cover trim and gasket to coordinate with balcony fascias or waterproofing layers of up to thicknesses of 22mm and for fitting prior to waterproofing or cladding.

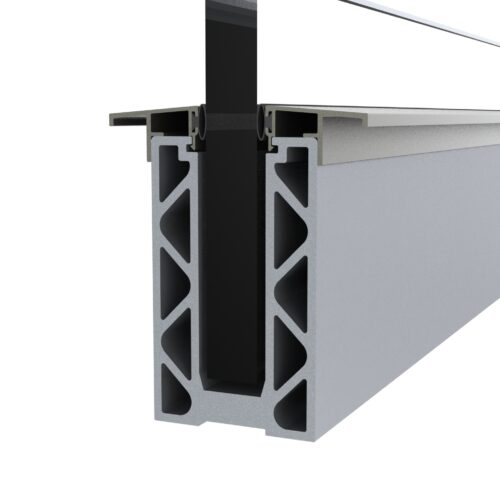

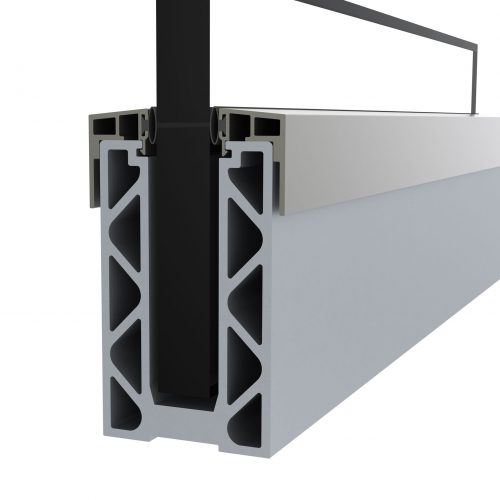

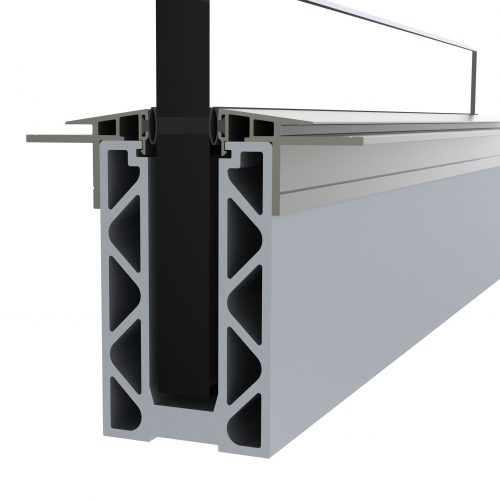

Powder coated base channel cover trim and gasket for flush fitting with aluminium cladding to the channel. This profile also finishes the base fixing detail against balcony decking or paving.

Powder coated base channel cover trim and gasket that coordinates with level capping or flashings trims to balcony parapets or upstands.

Powder coated base channel cover trim and gasket to coordinate with balcony fascias and finished floor surfaces

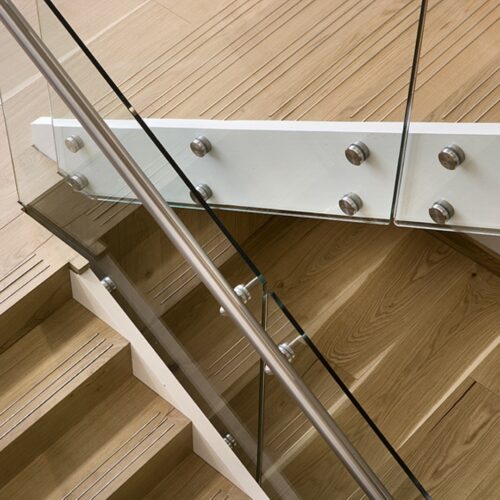

Boss fixed B40 Stair Balustrades, minimalist glass solution with visible face fixing to secure the structural glass

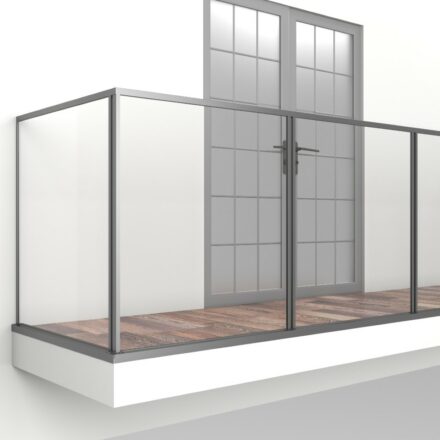

With a variety of Base Fixing options, the system is designed to provide the perfect balcony choice to enjoy uninterrupted views

The system is designed to meet the required loading for Walkways and Ramps where the application is in public areas, walkways and other communal areas
