B30
Frame & Infill panel
Architectural form through functional design
Innovative framed balcony balustrade and interfacing system with concealed fixing.
This new complete system provides edge protection and cover trim detail for balconies. The system is a complete balcony edge treatment, from the regulation height above finished floor level, down to the underside of the balcony or soffit.
The minimalist appearance means it resembles structural glass balustrades, but is a more cost-effective option.

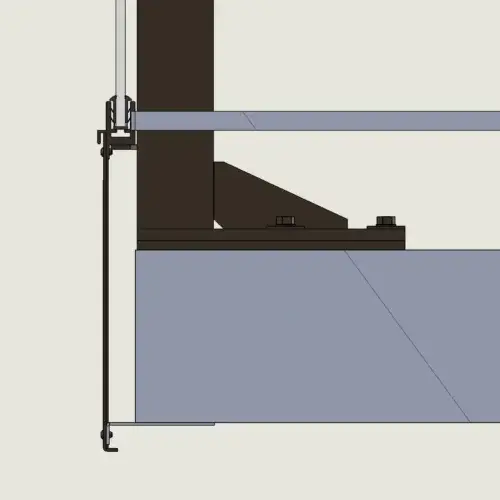

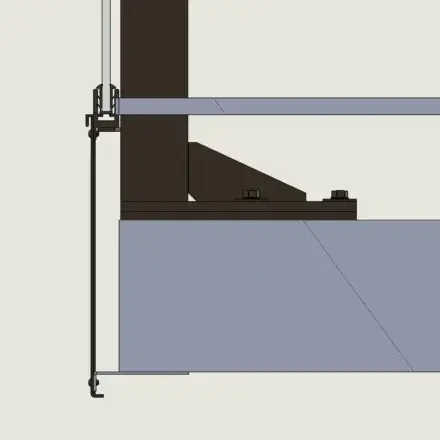

An aluminium base channel runs along the perimeter of the balcony or edge of the void and includes powder-coated slimline posts mounted at intervals that coordinate with other key building lines, such as external doors and cladding details. Posts can be spaced at up to 2m intervals without compromising the structural integrity of the system.
As the glass is supported along the top and bottom edges, there are no intrusive glass clamps. The rectangular handrail, finished to your chosen colour, is mounted to the posts and attached to the walls or adjoining structures to form a secure, protective barrier. Quick to install, this system improves lead times and reduces the number of trades that a contractor needs on site.
The system
-

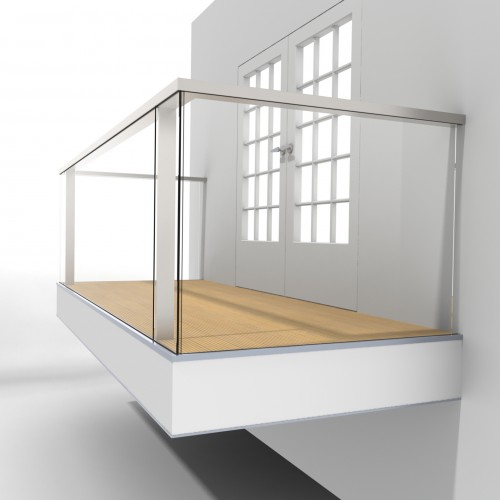

Glass
An innovative new BA concept that produces a structural glass effect for the cost of a posts and glass balustrade. Used on balconies and terraces, it incorporates a continuous base and profiled handrail to clamp the glass on the top and bottom edges. There are no glass clamps to obstruct the clean lines of the slim posts and rails.
-

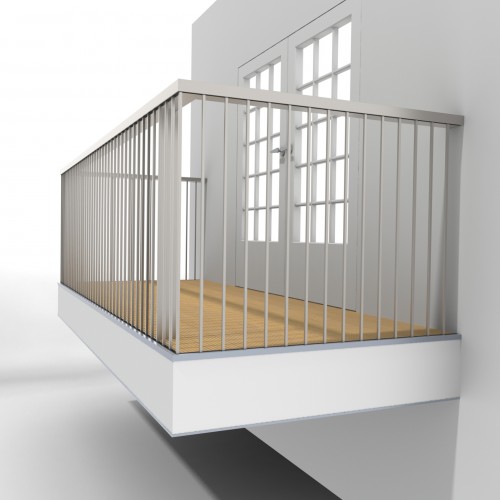

Vertical bar
The system can be used with a number of infills including vertical bars to any powder coat colour reference. The result is a cost effective vertical bar balustrade with high-quality and consistent finishes. Used on balconies and terraces, it incorporates a continuous base and profiled handrail to secure the vertical bars.
-

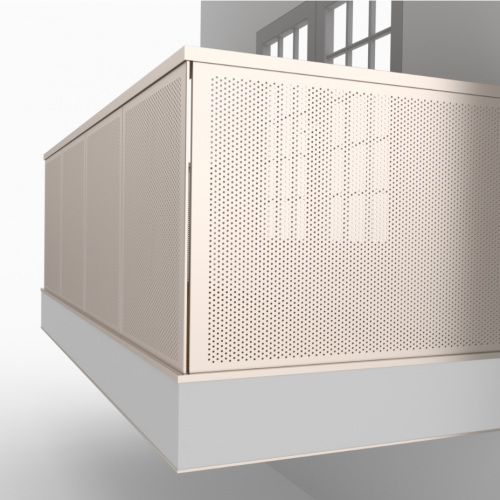

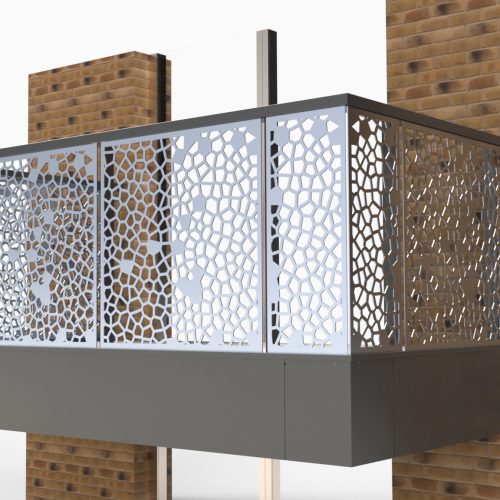

Perforated
Perforated infills are another class-A rated and non-combustible balustrade option. Perforate shapes, dimensions and sizes can be manufactured out of our aluminium panels to bespoke requirements.
-
Decorative Glass
Decorative glass is an attractive option used to increase privacy on balconies. We can produce a range of bespoke design requirements with the use of screen printing, back painting, sandblasting or with different interlayer colours and opacity levels.
-

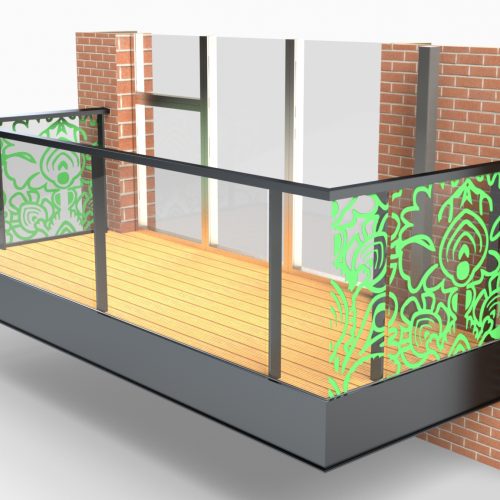

Laser Cut
Laser cut bespoke infills are another class-A rated and non-combustible balustrade option. Laser cut shapes, dimensions and sizes can be manufactured out of our aluminium panels to bespoke requirements. Design parameters ensure design meets point loading regulations.
-

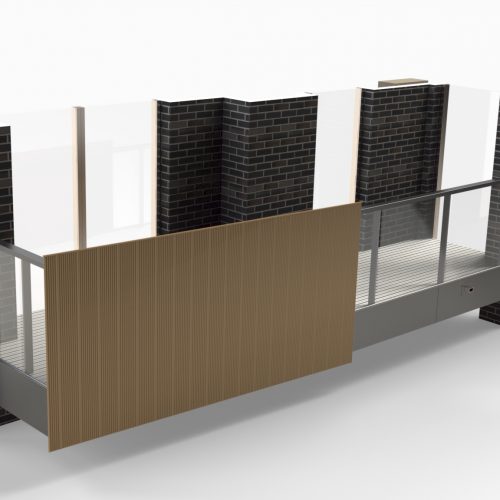

Corrugated Panel
Corrugated panel infills are an aluminium balustrade solution designed to provide full balcony edge protection, whilst also providing an additional class-A rated and non-combustible balustrade option.
-
Powder coated
Polyester powder coating achieves a resilient finish, with a huge range of colour options. Visually, it’s equally well suited to toning in with existing designs or making a standout visual statement with a contrasting colour.
-
Anodised
Anodising enhances the natural qualities of aluminium still further; it permits a strongly contemporary finish with incomparable corrosion and abrasion resistance. Unique amongst surface treatments, such as coatings, anodising is totally integrated with the metallic substrate.
-

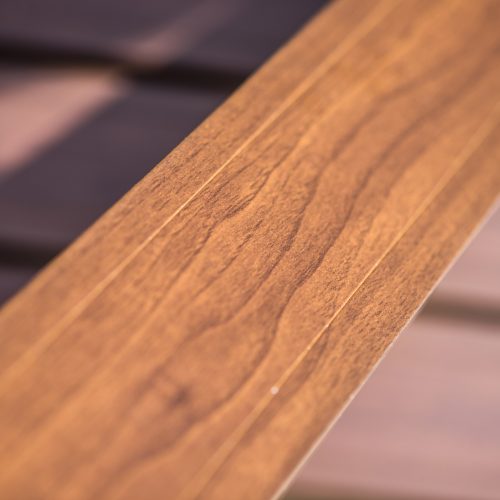

Woodgrain
This finish retains the timeless beauty of hardwood, but is impervious to splitting or decay and gives the maintenance-free benefits of polyester powder coating – it is achieved by transferring special inks from film into a powder coating base which provides a durable textured surface.
Request your B30 specification
Complete the specification form to your design by selecting the configuration images above.
